Descripción
Especificaciones

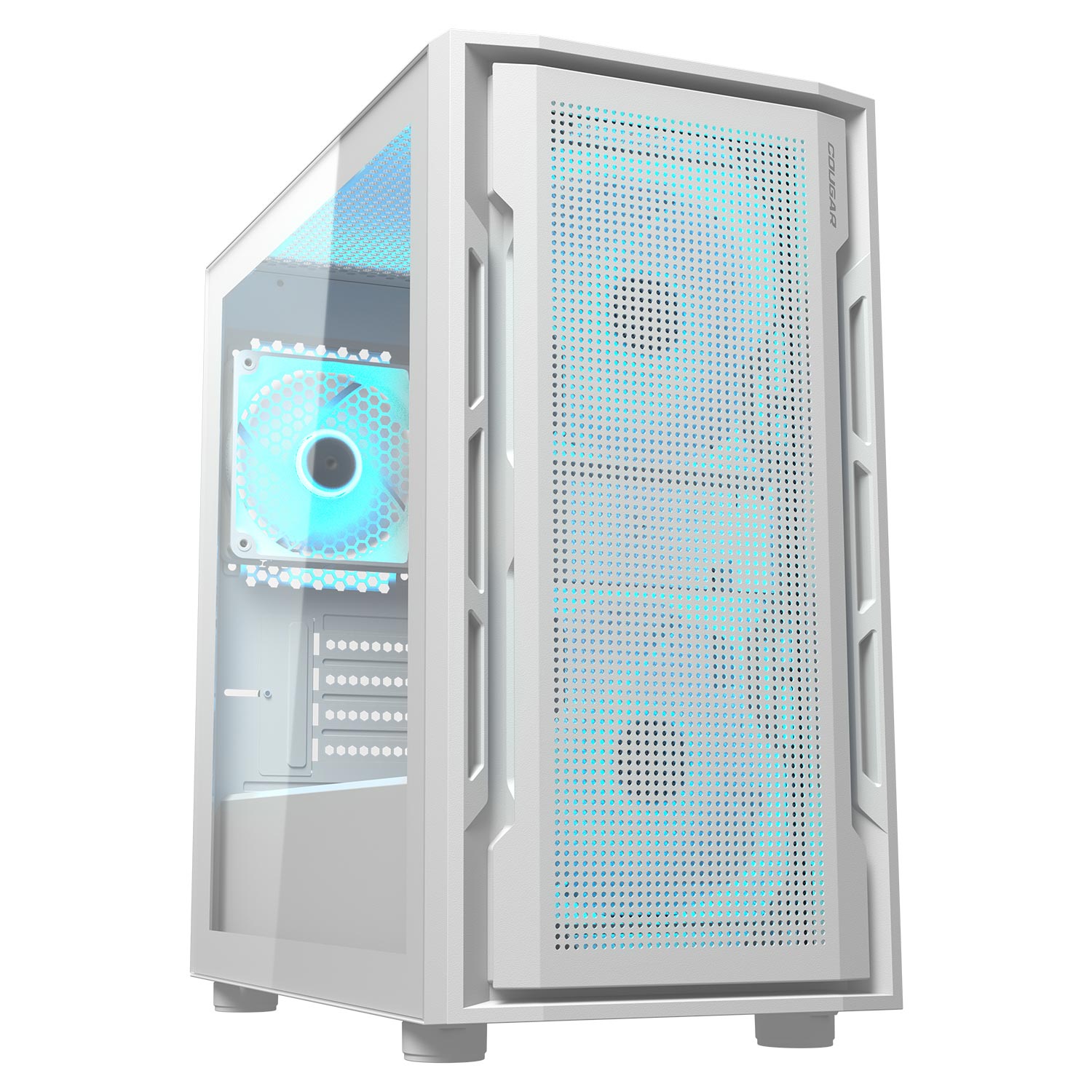

| Product Name | Uniface Mini RGB / Uniface Mini RGB (White) | |
|---|---|---|
| Case Form Factor | Mini Tower | |
| Motherboard Type | Mini ITX / Micro ATX | |
| Dimensions (WxHxD) | 210 x 422 x 390 (mm) 8.3 x 16.6 x 15.4 (in) |
|
| I/O Panel | USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button | |
| 3.5″ Drive Bay | 2 | |
| 2.5″ Drive Bay | 2+2 (converted from 3.5″ drive bays) | |
| Expansion Slots | 4 | |
| Cooling Fan Support | Front | 120mm x 3 / 140mm x 2 |
| Top | 120mm x 2 / 140mm x 2 | |
| Rear | 120mm x 1 | |
| Pre-installed Fans | Front | 140mm ARGB fan x 2 |
| Rear | 120mm ARGB fan x 1 | |
| Speed | 140mm ARGB fan: 1000 ± 10% RPM 120mm ARGB fan: 1200 ± 10% RPM |
|
| Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | |
| Maximun Number of Fans | 6 | |
| Water Cooling Support | Front | 280mm / 240mm / 140mm / 120mm |
| Top | 240mm / 120mm (When installing the top radiator, the RAM height limitation is 45mm.) | |
| Rear | 120mm | |
| RGB Sync Hub with M/B | Yes | |
| Max. Graphics Card Length | 340 (mm) / 13.4 (in) | |
| Max. CPU Cooler Height | 160 (mm) / 6.3 (in) | |
| Max. PSU Length | 160 (mm) / 6.3 (in) | |
